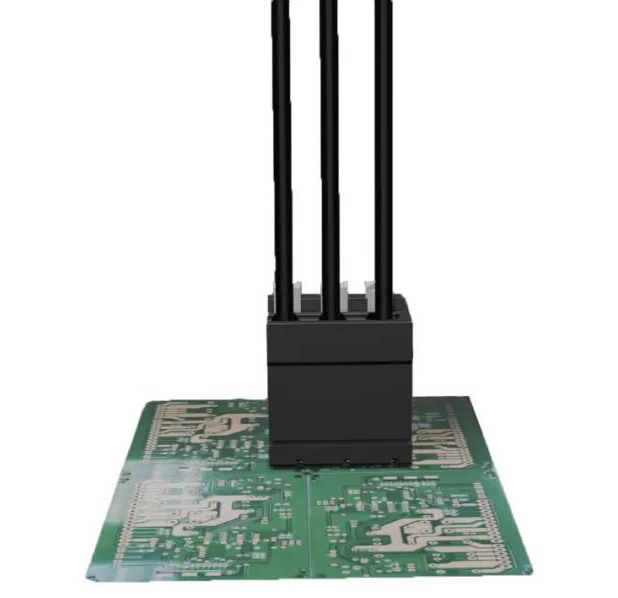

Dual-row solder pins securely connect to the PCB board, providing excellent anti-vibration performance.

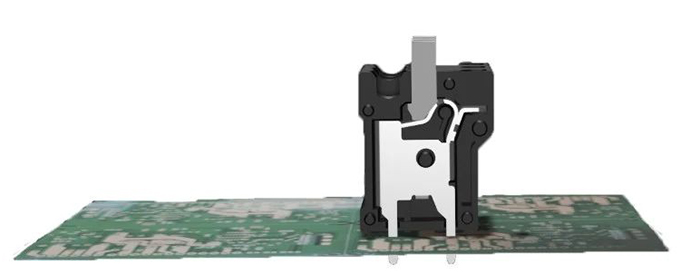

Push-in wiring helps customers save labor costs.

The product enables fully automated testing.

The product has passed the UL and TUV safety certifications.

| Product Parameters | ||

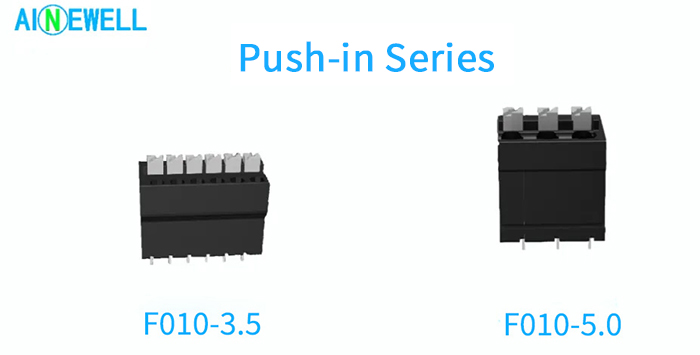

| Model | F010-3.5 | F010-5.0 |
| Pitch | 3.5mm | 5.0mm |
| IEC Voltage | 160V | 320V |
| IEC Current | 17.5A | 17.5A |
| IEC Wire diameter | 0.2-1.5m㎡ | 0.2-1.5m㎡ |
| UL Voltage | 300V | 300V |
| UL Current | 10A | 10A |
| UL Wire diameter | 28-16AWG | 28-16AWG |
Application Industry

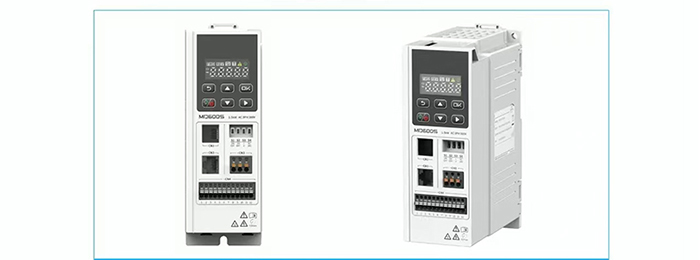

Mainly used in industries such as inverters and EV charging station,etc..
